In Our Element
Lightweight manufactured from 6063 T6 Aluminium Alloy which is 1/3 the weight of Steel
Truly Modular
Completely weld free creating a modular system factory assembled offsite into optimal units
Stanchion-Free
Distributes loads via the vertical fins, creating an endless aesthetic
High Loading
Tested to meet horizontally imposed loads up to 1.5k/N
Range of Colours
Powder Coated in a variety of RAL colours
Environmental
100% recyclability manufactured from 77% recycled aluminium
Non-Combustible
A2 Fire Rated and fully compliant with BS EN 13501-1
Extremely Durable
Has a design life of 60+ years and comes with our 25 Year Warranty*
Stanchion-Free Balustrade

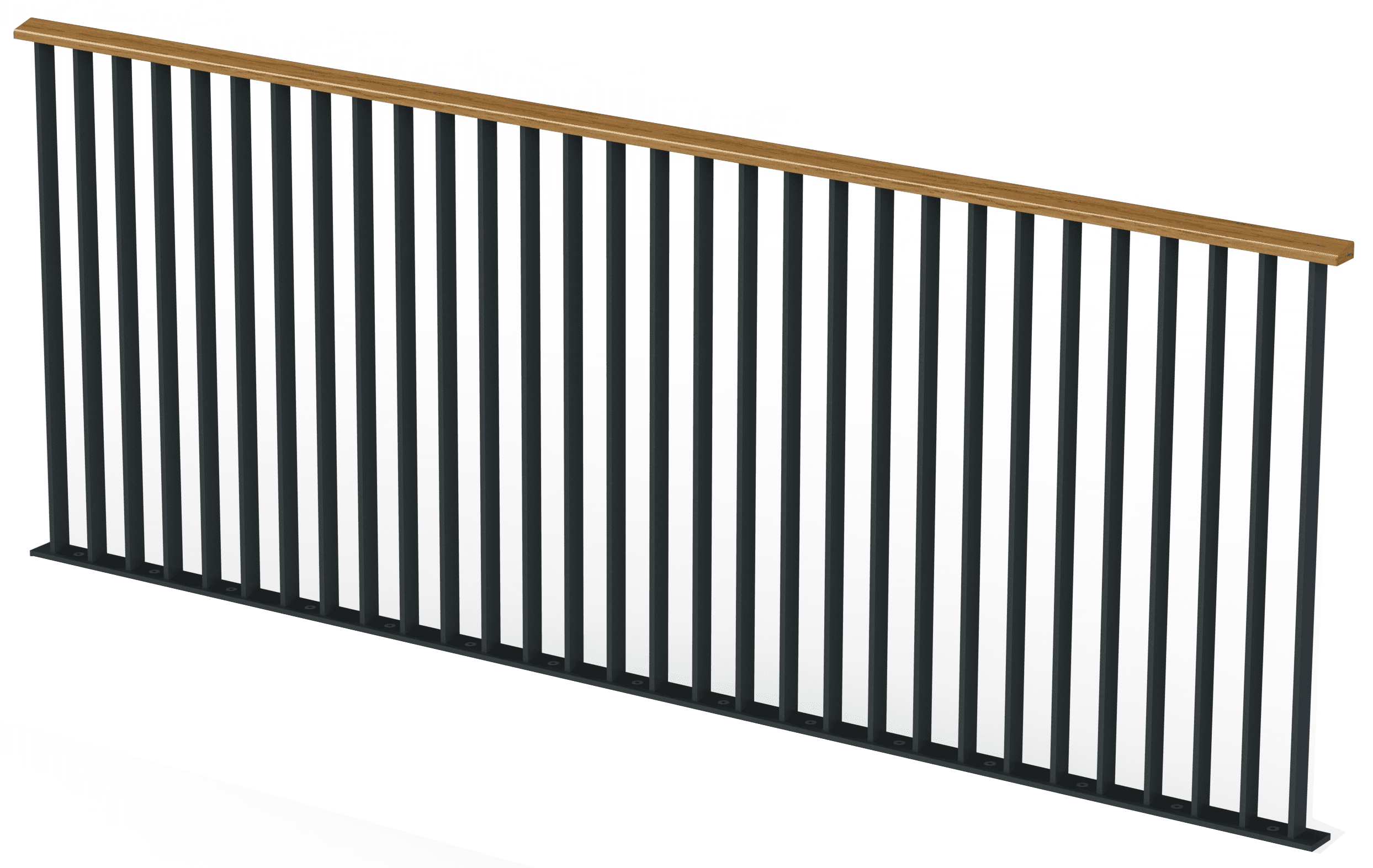

Infinity is a lightweight stanchion-free system that utilises the vertical fin to meet the structural load requirements. What was once an infill option that children could not climb, vertical fins are now being specified as part of a neat architectural style on major projects around the UK.
Infinity is designed with rectangular aluminium fins. These fins distribute the structural load so the system can withstand the high imposed loads up to 1.5k/N.
Infinity is Manufactured in Aluminium
︳Use of the Design for Manufacture and Assembly (DfMA)
︳approach.
︳Our Aluminium Infinity Rail is 1/3 of the weight of a steel
︳equivalent
︳No hot works on-site compared to typical fabricated steel
︳systems
︳Installation is fast due to the lightweight aluminium and optimal
︳panel sizing
︳Aligns with Modern Methods of Construction
︳Made from 100% recyclable materials
Suitable for all applications
Infinity Rail can be manufactured for use on balconies, juliets and even stairs. For staircases, the balustrade should be side-fixed to maintain structural integrity. We offer an alternative solution for any project requiring a fixed option utilising the vertical fins as infill panels.
Handrails

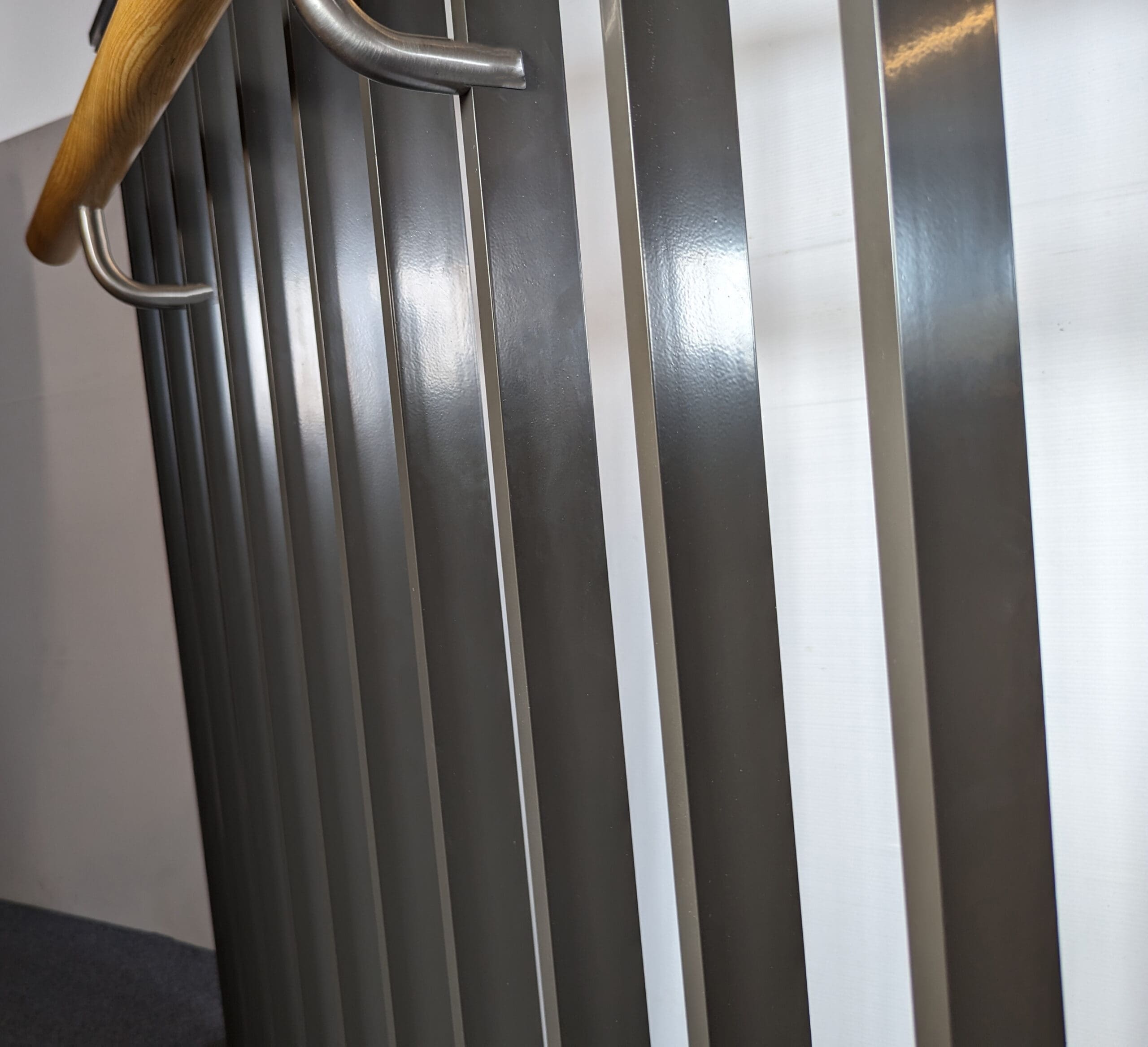

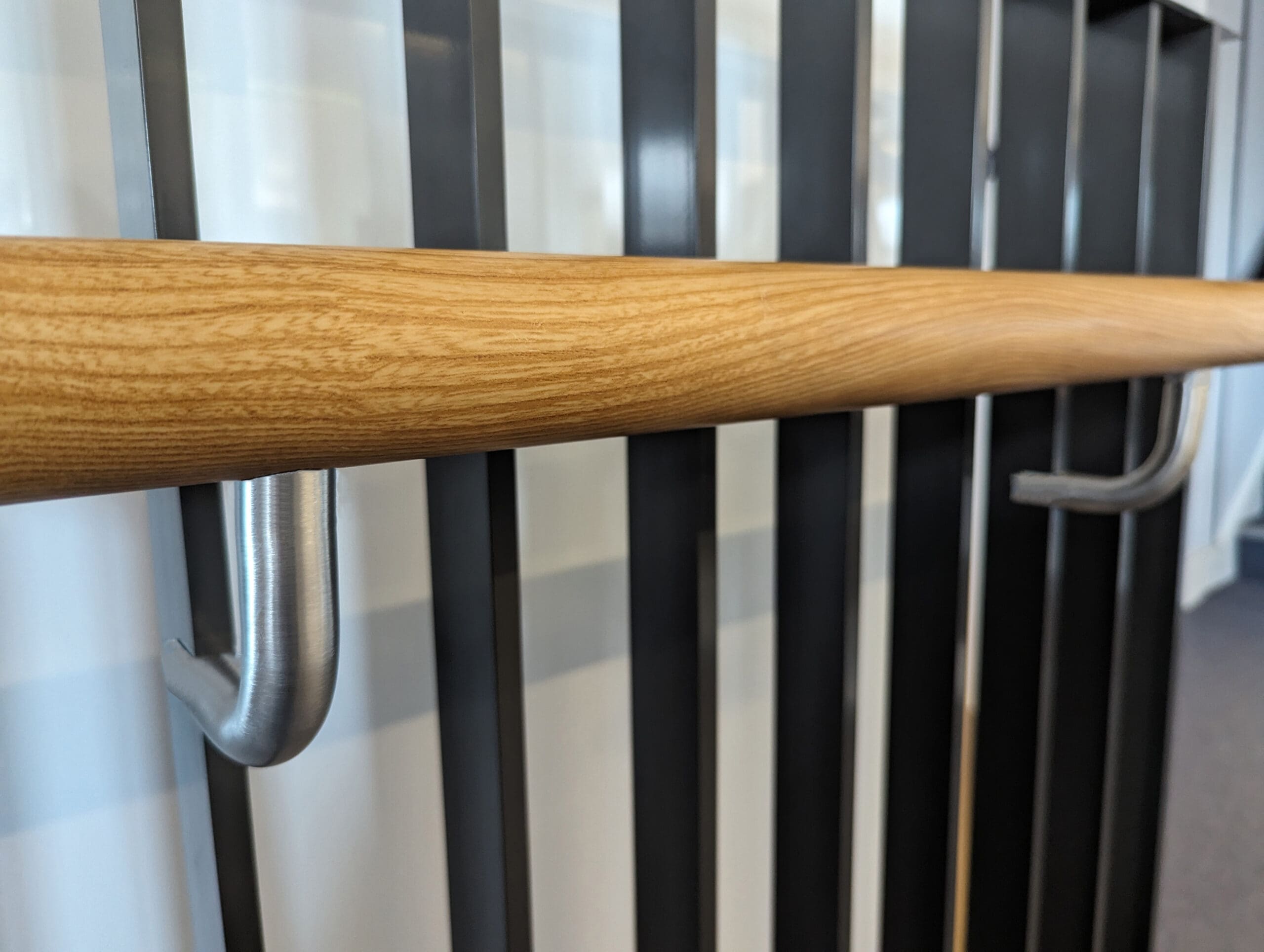

The infinity Rail typically includes an aluminium capping rail, we also offer an offset handrail. The popular choice is our
Hydro-Dipped Timberline Handrail but you could choose from our standard colour range to match your project requirements.
Standard Colour Range
Our Infinity Rail can be powder-coated in a wide range of Standard Neaco RAL colours that are shown below or they can also be powdered in bespoke RAL colours* as we coat in our very own powder coating plant. The colour coating can be offered in either nylon or polyester. Nylon is a preferred application for superior chemical resistance, providing the highest level of abrasion resistance. Whereas, Polyester is favoured for weather and UV resistance, providing more colour stability than nylon, which will fade faster with prolonged exposure to sunlight. All powder coating types give the balustrade a satin-smooth finish which is non-chip, permanent, hardwearing and abrasion-resistant.
