Modular Balconies

The Spectrum Range

Neaco’s Spectrum Modular Balconies are precision-engineered to meet the most stringent performance demands. Precision-manufactured off-site, these fully recyclable modular balconies are assembled off-site without the need for welding or hot works, minimising disruption, time, and environmental impact during installation.

Spectrum Modular Balconies offer the ultimate one-stop shop.
Everything is manufactured by Neaco and delivered to site for inclusion in the building as a complete unit.

Specifications and Features

                               Durable Aluminium Decking


Our modular balcony solutions feature aluminium decking that’s designed for durability and functionality. The decking incorporates a multitude of options, which maintain privacy by restricting views from above or below while allowing rainwater to drain efficiently.

Material

Aluminium
Stainless Steel

Infill Types

Toughened Glass
Vertical Infill
Perforated Panels

Stanchions

Centric
Quad
Offset

Toprails

Tubular
Ovular

Fixings

Base Fixed
Side Fixed

Decking

Modular Decking
Plank Systems

Our most popular balcony specification is glass panels with handrails and balustrade in aluminium, powder-coated in a choice of colours for a warm and comfortable touch. The powder coating provides corrosion-free durability.

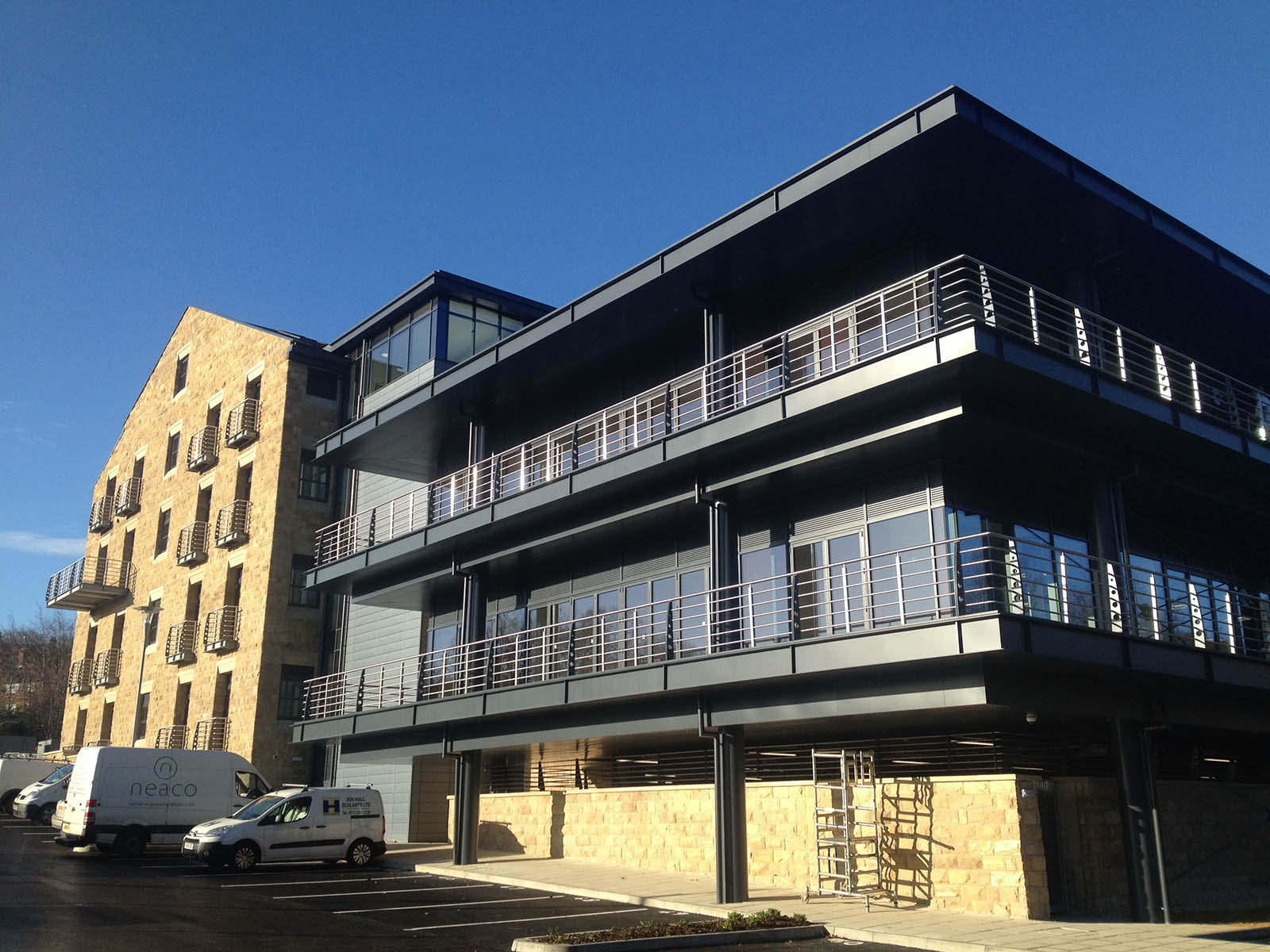

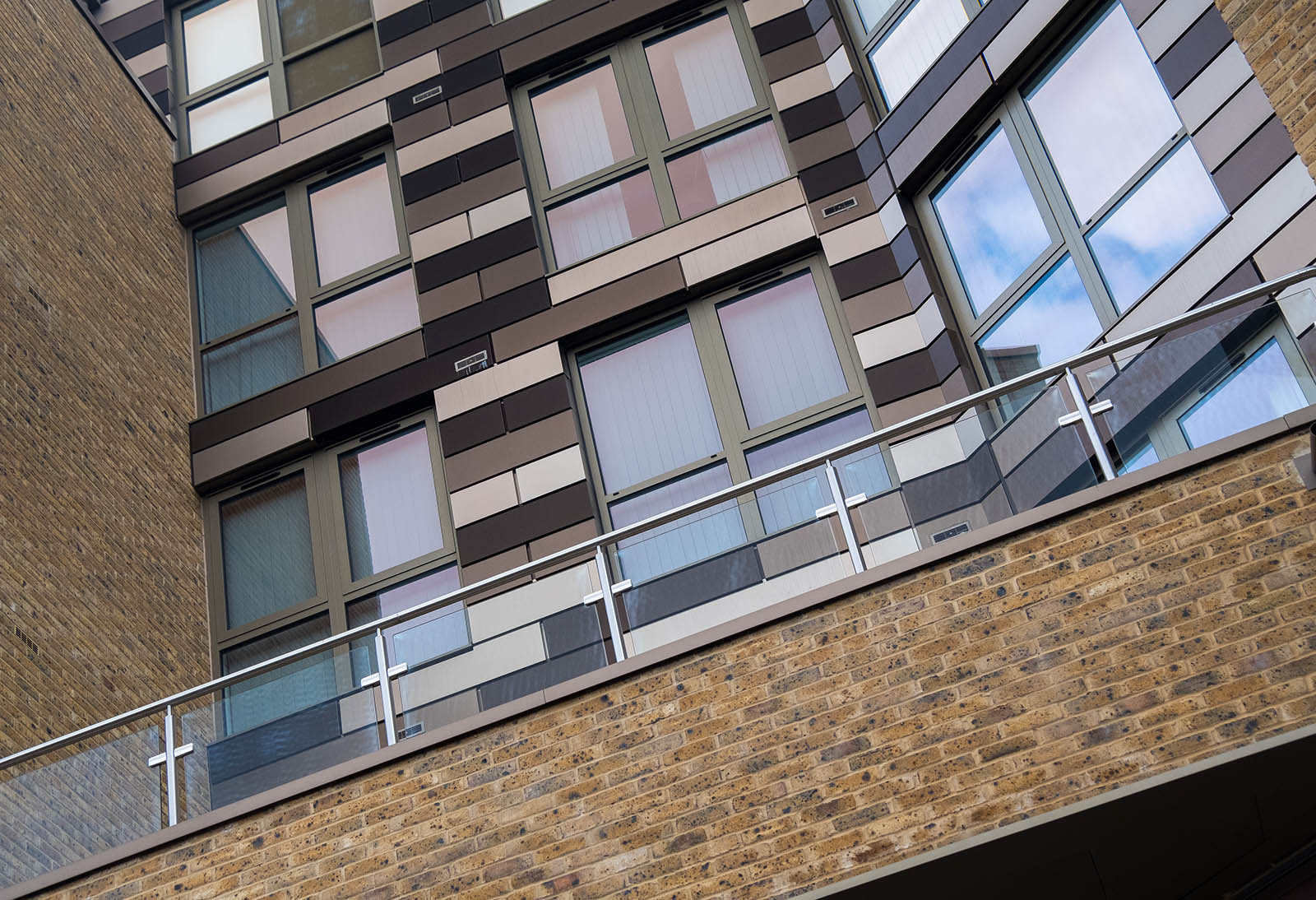

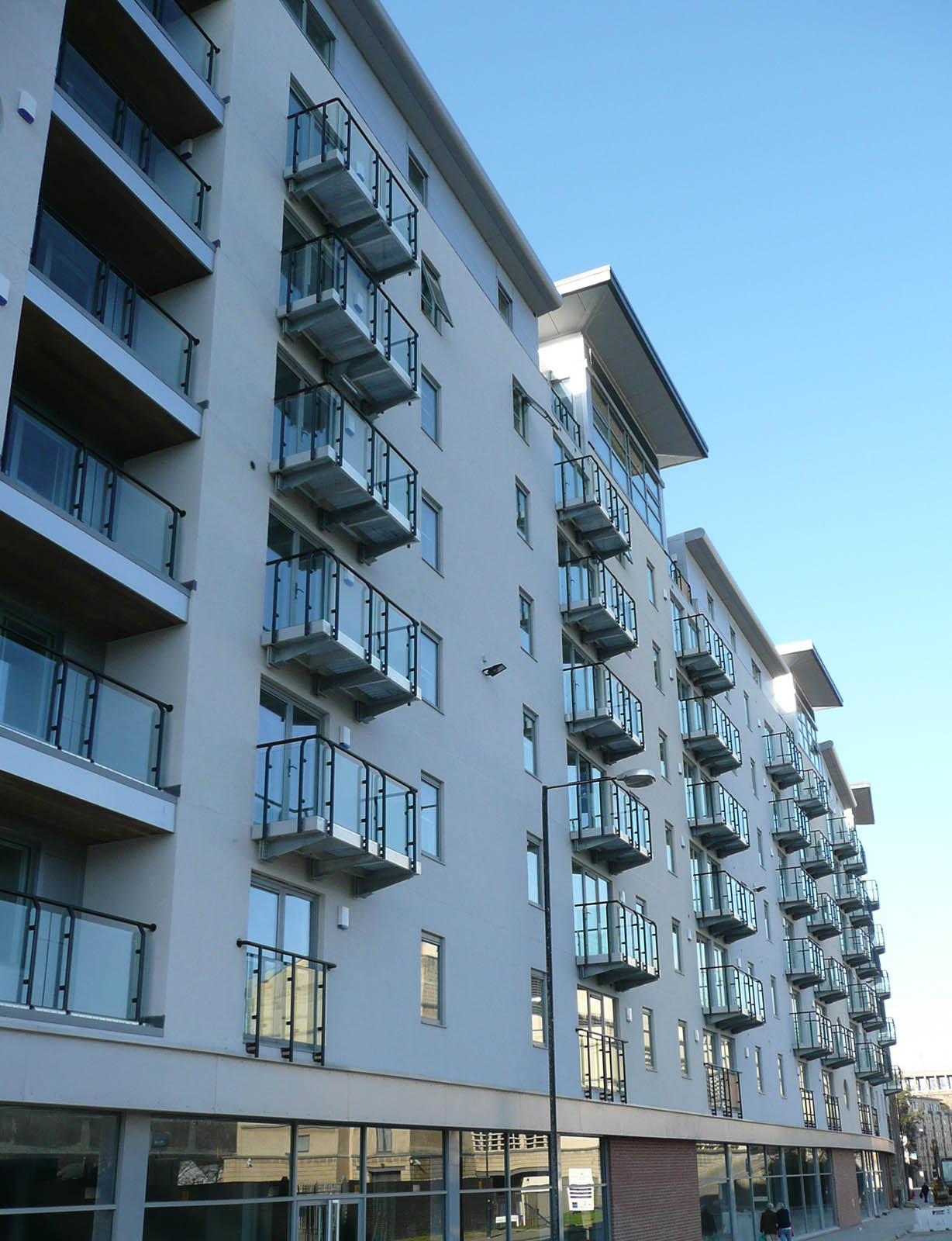

An alternative balcony specification is handrails and balustrade satin polished stainless steel. This would then make your balcony A1 Fire Rated, being the highest end of building standards and aesthetics.

As one of our most popular infill specifications, toughened glass provides a versatile and adaptable option. In accordance with BS EN12600, class 1 toughened glass panel infills can be clear, tinted, etched and/or curved.

Providing a classic styling, our railed infills are manufactured in 22mm vertical aluminium alloy flat bars. These can be powder coated in a range of colours and finishes but our most popular finish is Jet Black.

Although we do our standard ranges, we also do bespoke requirements to meet any project needs. These could include rail infills and tapered stanchions for commercial use, or bespoke infills such as trespa infills to create greater privacy.

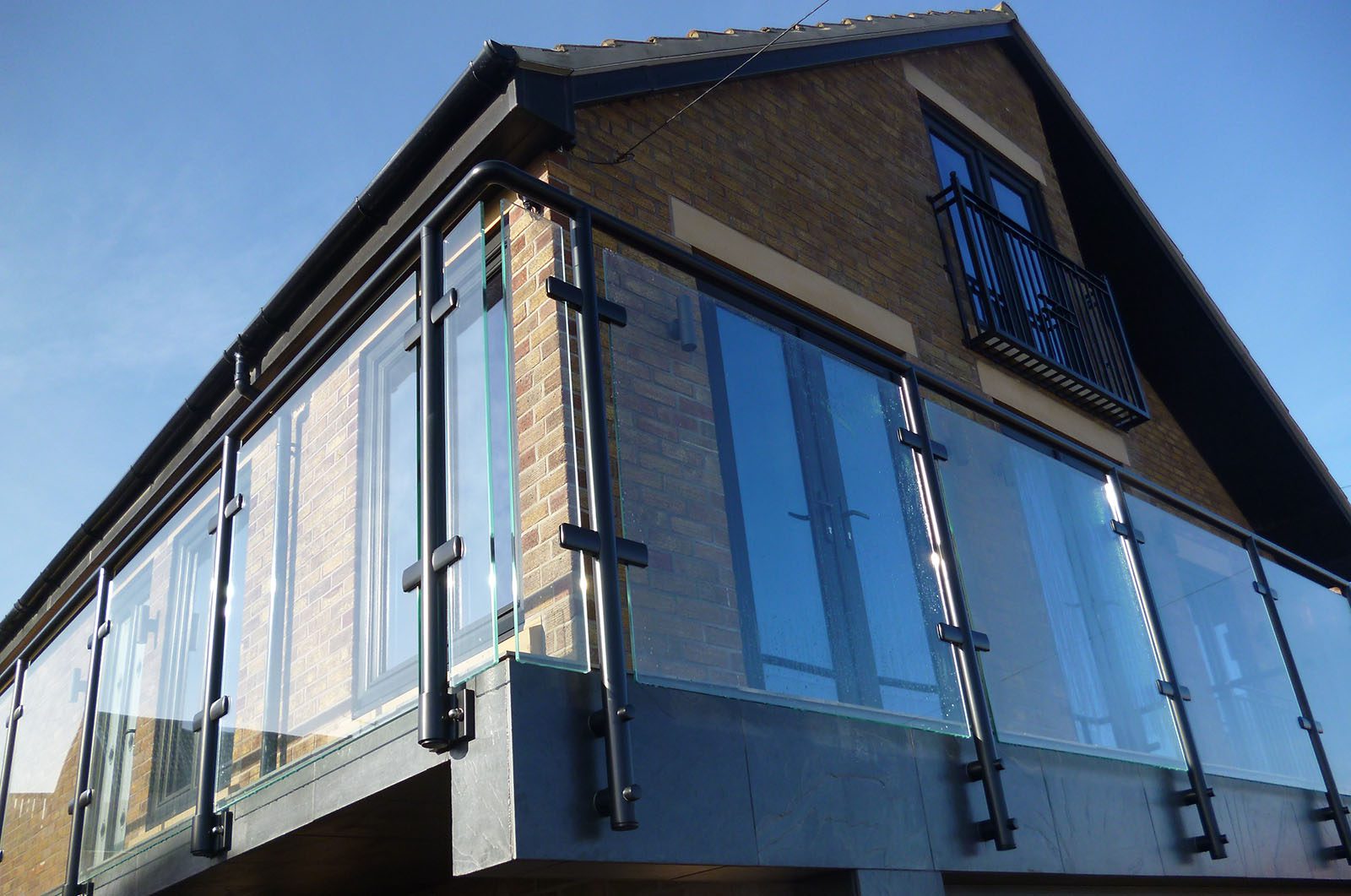

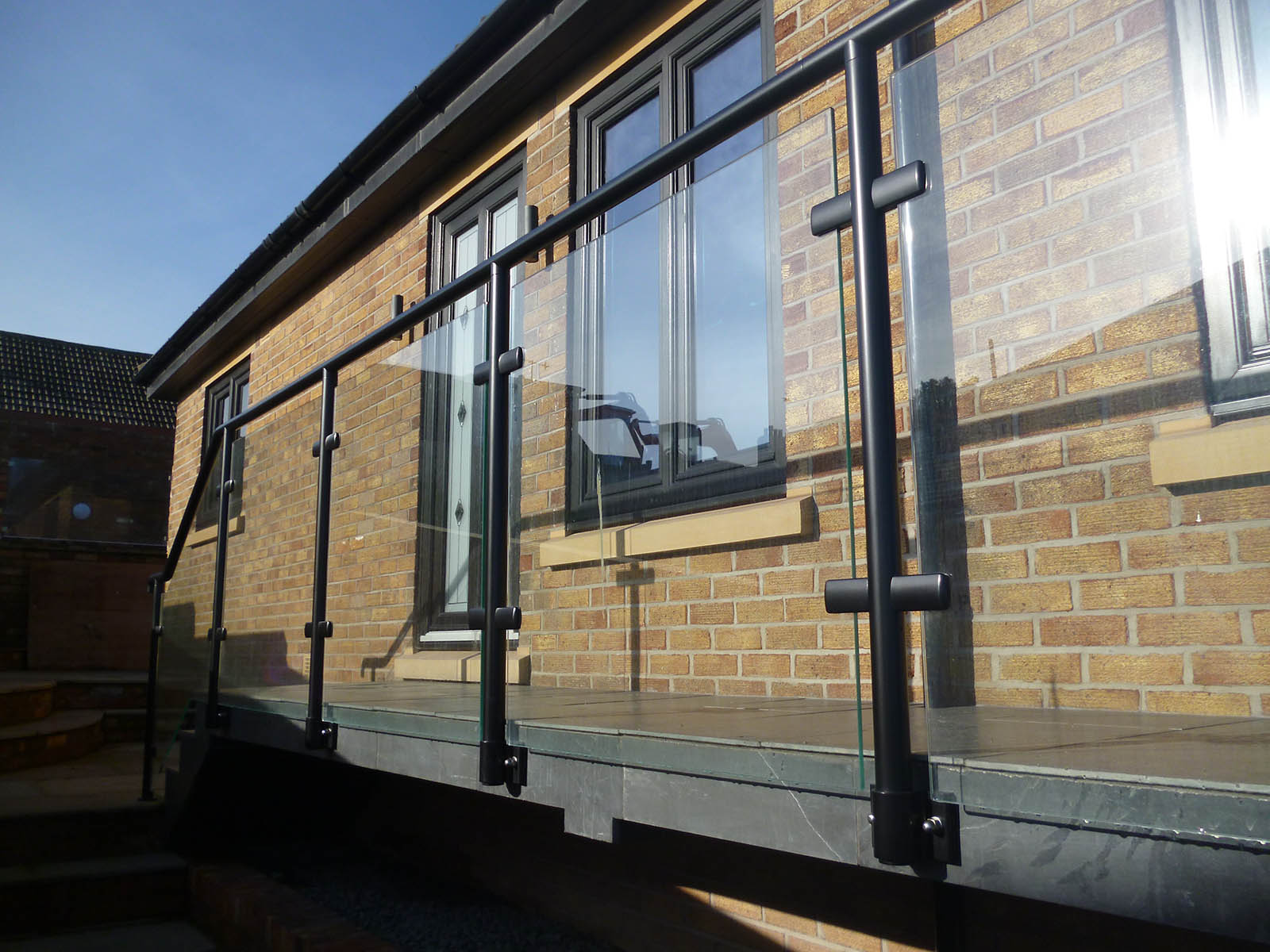

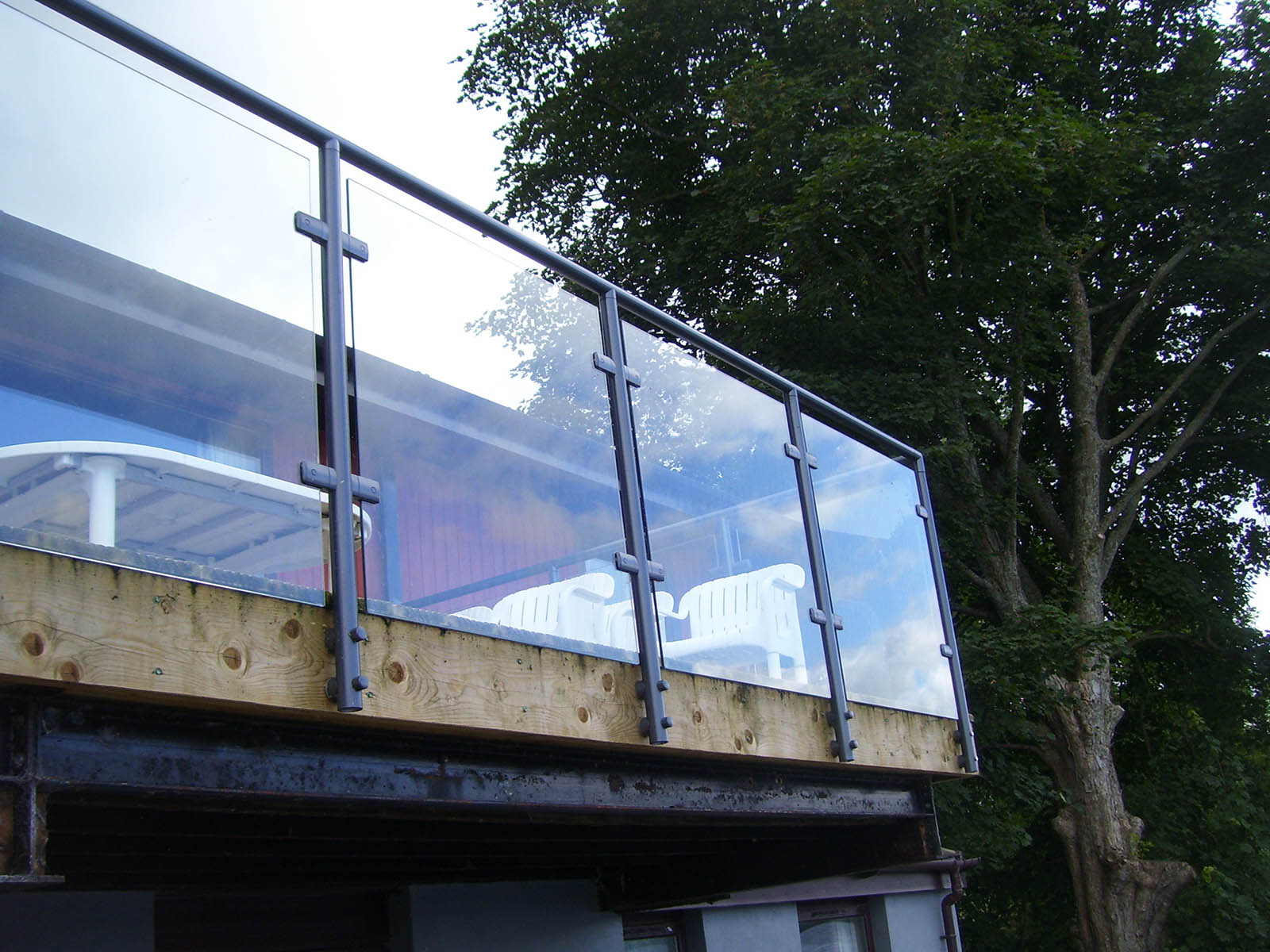

Centric is our original stanchion, offering smooth, classic styling with an optional stem bracket. Centric is a highly flexible option with the ability to adapt to most angles or bends.

If you want sharp, clean looks, our Quad stanchion has a square profile which makes it the excellent choice. The contemporary style has made it a popular specification for high-end projects.

Widely specified at projects throughout the UK, our original modular balcony design features stanchions offset from the glass panels. We can do both offset inside and outside the glass, creating a distinctive variation on our original modular balcony design.

The tubular top rail is our most popular specification across all types of design schemes because it is economical and meets latest building requirements.

The ovular top rail provides an alternative option with a profile which is wider than the tubular rail. It provides excellent strength and comfort.

Neaco’s base fixing detail utilises our custom extruded profile base plate, providing a solid platform for the stanchion to locate onto. This stanchion fixing method is ideal when fixing into solid structures such as structural steelwork.

The side fixed detail allows the stanchions to be fixed on the side of any structure, typically with a 40mm offset. The side fixed detail can be achieved on structural steelwork, concrete and masonry, similar to our Base fixing.

Modular decking is over 12x faster to install compared to plank decking. It requires significantly fewer fixings and the cutting, coating and edging are carried out off-site. Our range of Modular Aluminium Decking systems are ideal for balcony flooring, fully compliant with all relevant building regulations, they offer a wide range of advantages in comparison to other decking materials, click here to decide which decking you would like on your custom modular balcony.

Our aluminium planking system is designed to replicate the aesthetics of traditional timber and composite decking but complying with the latest government’s Building Regulations. Spanning to superior capabilities and having a high slip resistance, these planks are ideal for refurbishments that need to remove the timber without losing the traditional aesthetics.

 Bespoke Designs

Available in a choice of stylish designs, the balconies in our Spectrum range offer a contemporary style to upper floors and genuine kerb appeal for any residential development. Due to the balconies being assembled from modular component parts, they are available in various fire-rated decking and balustrade options. This makes them the ideal all-in-one solution that can adhere to any design requirements.





Neaco’s balcony packages offer ready-made compliance with all relevant regulations, including the requirement to use Euroclass A1 or A2 fire-rated materials on balconies and terraces installed on buildings over 18m in height. The company’s balustrade and decking systems can be supplied as part of a standard modular balcony package designed for fast installation.

Ready-Made Compliance

neaco’s modular balcony systems provide ready-made compliance with all relevant building regulations, including the requirement to use non-combustible, fire-rated materials for balconies on high-rise buildings. Our systems, including balustrades and decking, are designed for fast installation and are pre-tested to meet all current safety standards.



Manufactured in Aluminium

Crafted from high-quality 6063 T4 / T6 Aluminium and built to the BS EN 755 standard series, these modular balconies are known for their strength, durability, and resistance to corrosion. The use of aluminium makes them lightweight yet exceptionally strong, providing a long-lasting balcony solution.



Truly Modular & Bespoke

Spectrum balconies are manufactured off-site to your bespoke dimensions, ensuring a precise fit and seamless integration into your project. This modular design reduces on-site time and disruption while offering flexibility in both design and function. The ease of assembly also means that balcony installation can happen late in the construction process, streamlining project timelines.



Compliant & Safe

Our modular balconies are fully compliant with BS EN 8579:2020, which provides guidelines for the design of balconies and terrace areas. This guarantees that your project meets all modern safety and construction standards. The system is also A2 Fire Rated and compliant with BS EN 13501-1, ensuring that the materials used are non-combustible and suitable for high-rise buildings.



Durability That Lasts

Spectrum balconies are designed for a 60+ year life expectancy, making them an incredibly durable choice for any residential or commercial building. Our commitment to quality is backed by a 25-year warranty, giving you peace of mind that your investment will stand the test of time.



Recyclable

neaco’s modular balconies are manufactured with the environment in mind. They are made from 100% recyclable aluminium, with 77% of the material coming from recycled sources. This makes our balconies an eco-friendly choice, aligning with modern sustainability goals and reducing the carbon footprint of your project.



Concealed Fixings

One of the key advantages of Spectrum Modular Balconies is their concealed fixings. All components are connected internally, providing a tamper-free design that enhances safety and security. This design choice ensures a sleek, clean finish without visible screws or bolts, contributing to a modern aesthetic.



Superior Loadings

Our modular balcony systems are designed to meet the specific loading requirements of your site, ensuring safety and performance under a wide range of conditions. Whether your project requires higher load-bearing capacities or standard residential loadings, we can tailor the design to suit.



Non-Combustible and Fire-Safe

All Spectrum Modular Balconies are designed with safety as a top priority. They are fully compliant with BS EN 13501-1 standards for fire safety, making them A2 fire-rated and non-combustible. This ensures that the balconies are safe for installation on high-rise buildings over 18 metres, where fire safety regulations require the use of non-combustible materials such as Euroclass A1 or A2 materials.



Balustrade Colour Range

Our aluminium balustrades and decking can be supplied in mill finish or custom RAL powder-coated colours. Neaco offers powder-coating options in polyester:

Polyester offers exceptional weather and UV resistance, ensuring greater colour stability over time, making it the preferred choice for outdoor applications where prolonged sun exposure occurs.

At neaco, we have our own in-house powder coating facilities, enabling us to offer bespoke RAL colours. Our powder coating process delivers a non-chip, permanent, hardwearing, and abrasion-resistant finish that ensures long-lasting aesthetics and performance.

Jet Black
RAL 9005
Anthracite Grey
RAL 7016
Agate Grey
RAL 7038
Sapphire Blue
RAL 5003
Ruby Red
RAL 3003
Golden Yellow
RAL 1004
White Aluminium
Metallic
Tungsten
Metallic
Chromium
Metallic
Light Oak
Timberline
Dark Oak
Timberline

Decking Colour Range

Anthracite Grey
RAL 7016
Beige Grey
RAL 7006
Dusty Grey
RAL 7037
By choosing Neaco’s Spectrum Modular Balconies, you benefit from a system that combines modular convenience, safety compliance, and durability, with an emphasis on sustainability and customisation.
These balconies are designed to enhance the aesthetics and functionality of your building while adhering to the strictest safety and regulatory standards.

FAQ’s

What is a modular system?
Modular systems provide a huge range of modular components which are precision- manufactured off-site to an exacting standard, deliv­ered to the site and then assembled on-site. This means factory-controlled quality, faster installation, less mess, less waste and less energy con­sumption than products which are fabricated on-site. Spectrum's modular components are assembled with an internal connection system which requires no external fixtures and no welding for an ultra-smooth finish.
Why do neaco manufacture in aluminium?
Aluminium is a great building material for many reasons: it provides maintenance-free durability and is also non-toxic, corrosive-free, non-combustible and 100% recyclable - a particularly useful feature for our Genesis industrial system designed for eco-friendly performance in the harshest environments. The permanent finish of Neaco’s nylon powder coating - a standard specification on most Spectrum systems - provides smooth, clean lines for comfortable touch and high aesthetic value. It is also worth noting that our stainless-steel systems provide many similar benefits.
Are the balconies supply only or can Neaco supply and install them?
neaco can provide either package you desire. Our balconies are designed for fast installation, particularly our Juliet balconies which are available in packs of standard sizes and delivered within 3 weeks of ordering with all components ready to assemble. If you would instead have neaco take care of the installation, we can arrange for our team of fitters to carry out the work.
Can these balconies be manufactured to bespoke requirements?
Yes, absolutely. Over the years we have worked with numerous architects and designers to incorporate bespoke features outside of our standard specifications, including light fittings to the top of stanchions, etched designs to glass infills and structural glass installed at unusual angles. We pride ourselves on the flexibility and adaptability of our technical support services, so please feel free to discuss your requirements with one of our team members.
Are these balconies free draining or directionally drained?
Our modular balconies utilise Neatdek range of decking, depending on this decking choice they can be free drained or directionally drained.
What type of glass is used when specified on a balcony?
neaco always uses glass which is toughened in accordance with BS EN12600. We recommend a glass panel thickness of at least 10mm.
